tango-excel-cw is a library for exporting or generating Excel files using a useExcelExporter hook function. The config object allows you to quickly configure the relevant information for Excel export, thus enabling Excel generation. This library is suitable for work order generation, batch export of year-end data, and more.

It's based on two third-party libraries: exceljs and file-saver.

During installation, you need to install these two third-party libraries as core dependencies. Instead of packaging them directly into the package, we include them as This ensures compatibility with projects that already have these two libraries installed, and also effectively avoids the "phantom dependency" issue.

How to use?

1.Installation

npm i tango-excel-cw exceljs file-saver

2.Import

import { useExcelExporter } from "tango-excel-cw";

3.Use

// react
import { useExcelExporter } from "tango-excel-cw";
import { MaterialButton } from "tango-ui-cw";
import Tree from "@/assets/yourimg.jpg";
import DemoExcel from "@/assets/youremptyexcel.xlsx";

function Demo() {
  const { exportExcel } = useExcelExporter();
  const config = {
    data: {
      id: 1,
      treenumber: "110C1892",
      treekind: "poplar",
    },
    fileName: "export.xlsx",
    template: DemoExcel,
    cellMap: {
      A3: "id",
      B3: "treenumber",
      C3: "treekind",
    },
    startRow: 2,
    image: {
      url: Tree,
      range: {
        tl: { col: 6, row: 2 },
        br: { col: 7, row: 3 },
      },
    },
    onBeforeExport: () => console.log("prepare to export..."),
    onSuccess: () => console.log("export successful!"),
    onError: (err) => console.error("export failure", err),
  };

  function ExportExcelDemo() {
    exportExcel(config);
  }

  return (
    <>
      <MaterialButton onClick={ExportExcelDemo}>Export to Excel</MaterialButton>
    </>
  );
}

export default Demo;

Demo

id	treenumber	treekind	treelevel	location	staff	action
1	110C1892	poplar	twond level	Lama Temple	ClayW

Batch data insertion and precise control

Scenario: The format after table export is: the first row of the table needs to be filled with a unified 'table export time', and the third row of the table is the first row of table data. In this case, only using the startRow parameter to control the starting insertion position of the data cannot fill the 'table export time' data into the first row of the table. Therefore, you can combine the cellMapStatic parameter to achieve this requirement. The sample code is as follows:


  // traverse the form data finalDatas requested
  const dataRows = finalDatas.map(item => ({
    date: item.time,
    location: item.location,
    treekind: item.treekind,
    treenumber: item.treenumber,
    abnormal: item.abnormal,
    staff: item.staff,
    range: rangeStr          // table export time
  }));

  // configure parameters for exporting to Excel
  const config = {
    data: dataRows,          // data sources
    fileName: export.xlsx,  // export file name
    template: EmptyTable,    // empty demo excel
    startRow: 3,             // the starting row for data insertion
    cellMap: {               // cell map configuration
      A: "date",
      B: "location",
      C: "treekind",
      D: "treenumber",
      E: "abnormal",
      F: "staff"
    },
    cellMapStatic: {         // accurate mapping of static data (not affected by startRow)
      F1: "range"            // insert 'table export time' into the specified position
    },
  };

useExcelExporter Function

Function	Type	Accepted Values	Description	Default
exportExcel	Object	{ data, fileName, template, cellMap, startRow, image... }	export configuration items, including data source, column definition, file name, etc.	-

Config Props

Prop	Type	Accepted Values	Description	Default	Verson
data	Object	Object	excel data source	-	-
fileName	String	String	exported excel name	export.xlsx	-
template	String	String	empty demo	-	-
cellMap	Object	Object	excel table map configuration	-	-
startRow	Number	Number	starting row for insertion	1	-
image	Object	Object	configuration when inserting pictures	-	-
onBeforeExport	() => void	() => console.log('prepare to export...')	the callback function before exporting, triggered before the export operation starts	-	-
onSuccess	() => void	() => console.log('export successful!')	export successful callback function, triggered after the export operation is completed	-	-
onError	() => void	() => console.log('export failure', err)	export failure callback function, triggered when the export operation fails	-	-
cellMapStatic	Object	Object	precisely control the insertion position when inserting static data	-	0.0.3
wrapText	Array<String>	['B2','H1:H20']	setting wrap text	-	0.1.1
alignment	Array<Array> \| Array<[String, Object]>	single control：['B2',{ vertical: 'middle', horizontal: 'left' }]， batch control：[['B2',{ vertical: 'middle', horizontal: 'left' }], ['C2',{ vertical: 'middle', horizontal: 'left' }]] vertical values：top/middle/bottom， horizontal values：left/center/right	set cell alignment	-	0.2.0

Image Props

Prop	Type	Accepted Values	Description	Default	Verson
url	String	String	img src	-	-
range	Object	Object	coordinate object control	-	-
keepOriginalSize	Boolean	Boolean	Enable the image to maintain its original proportions within the excel grid	false	0.0.4

Range Props

Prop	Type	Accepted Values	Description	Default	Verson

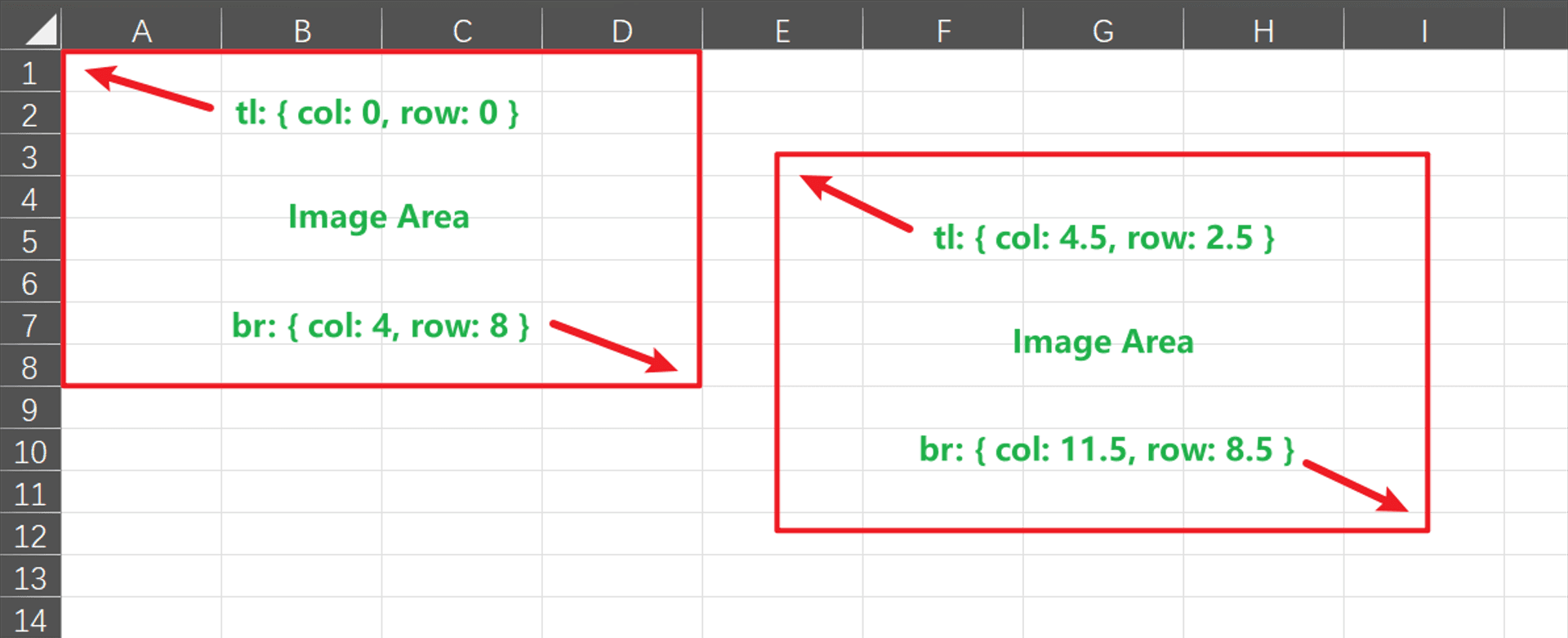

tl	Object	Object	The image is located at the top-left corner coordinates, with vertex { col: 0, row: 0 } (top-left corner of A1).	-
br	Object	Object	The image is located at the bottom right corner, with vertex {col: 1, row: 1} (bottom right corner of A1).	-

InRange Props

Prop	Type	Accepted Values	Description
col	Number	Number	column
row	Number	Number	row
offset	Number	Number	offset value, used to control the position of the image in the cell
